Wind nets VICONA ®Model: VICONA wind net mononet
Strong and robust wind net that provides excellent protection against wind, frost, dehydration and transparency. Vicona mononet is UV-stabilized and stretched. The wind net provides pleasant ventilation and good light emitting. 50% or 70% wind-breaking. The net is made with wrench fasteners for easy mounting. Suitable in most environments such as greenhouses, nurseries, gardens, garden centers, open spaces, campsites, storage sites, dumps, animal shelters, football courts, tennis courts and golf courses etc.
7-10 years of UV warranty for proper use. Machine size approx. 45AR/2x4mm, 70AR/2x2mm
Vicona mononet is delivered in widths of 1, 2, 3, 4 or 6 m and 100m/roll. Can also be available in other lengths at a cost.
See enlarged image on the network structure
click hereVicona Wine network with advertising pressure Increase the impression of your plant with advertising pressure on the winds.
VICONA® mononet
|
45AR |
70AR |
| Wind Accent: |
50% |
70% |
| Shading: |
45% |
70% |
| Color:* |
Grön |
Grön |
| Weight: |
115 gr/m² |
135 gr/m² |
| Length:** |
100 m/roll |
100 m/roll |
* Also available in black full rolls. ** Available in other lengths at cost.Also take part in our wide range of mounting accessories for VICONA® windscreen

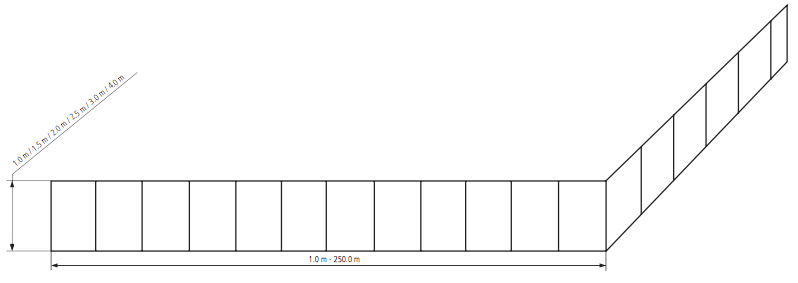

Windnet steel structure We also offer steel construction to the fabric in any length and number of corners. Heights are from 1-1.5-2-2.5-3 to 4meter.
The complete construction is built on galvanized foundation posts 65x35x1200 mm.
The foundation tubes are placed in pre-drilled holes and then filled with concrete. Concrete is included in the quotation or the price.
Stools are made of galvanized oval tubes 70x42 mm. The length of the posts is 2.00 meters and alternatively 3.00 meters above ground level.
On top of each post, a special support bracket that attaches the horizontal tube to Ø32x1.5 mm is mounted.
The end sections are supplemented with cross stitching to provide long-term stability Ø32x1.5 mm. On the outside, support brackets that provide the posts are fitted with a good side support Ø32x1.5 mm. every 4.00 meters.
Vicona wind weave Mono 70% green. Wind breakage about 70%. The fabric is delivered in height of 2.00 meters and alternatively 3.00 meters.
On the upper connection pipe the fabric is mounted with steel clips. At the ends, the fabric is woven in the aluminum profile with track list Z. To give the net a good attachment. A plastic wire joins the fabric in the lower part at ground level.
