Sitec transplanter

Sitec transplanter

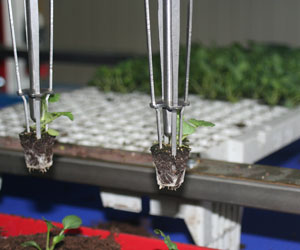

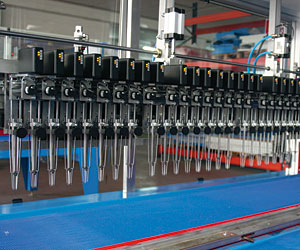

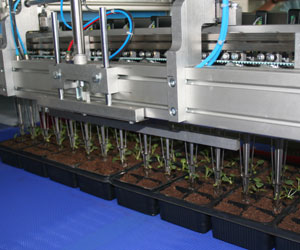

The Sitec transplanter - the right choice is an advanced and functional mechanical system. It is easy to use and it is very flexible; you can choose between 3-16 fingers. This mechanical system has a maximum capacity of 24 000 plants/hour.
In addition, most pots and trays can be used- for instance, square pots, round pots and hanging baskets.
Plugs from 10 to 100 mm (0.4-4 inches) can be planted, with one or more plugs in each pot.

Options:
An advanced and very accurate camera scans trays and removes plugs that do not meet set standards.

Additional Information:
Programmable till- 16 fingers.
•Fingers singularly motorized with technology without cables.
•Control terminal with color touch-screen.
•Programmable directly from the terminal.
•Every disposition of the plants in the tray.
•Self-diagnostics shown on terminal.
•Function of side source.
•Removable fingers with interaxis min. 31 mm (1.22 inches).
•Working width fingers 1000 mm (39.4 inches).
•One command for finger opening/closing.
•Tray width max 600 mm.
•Production fingers: 1200 cycle/hour.
•Installed power 2 KW, 400 V, 3F, 50/60 HZ.
•Air usage 80 L/min.
•Weight 630 kg.
•CE Conformity.
Up to 38,400 plants / hour.
Cordless - wireless technology controls and drives the grip clips.
Adjustable up to 32 seedlings.
Planting chlorine that provides a safer operation.
Analysis of the processes takes place regularly and is available via the terminal.

Take a look at the videos below to see how it works!
