Potting Machine Plus (inclusive of pot magazine, mechanical conveyer and 3 m band)
Functionality:

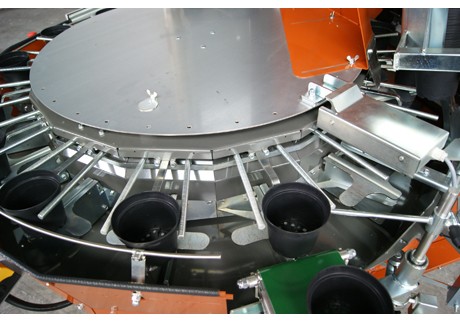

This potting magazine takes a pot from the staple and puts it down directly into the pot holder on the conveyer. The belt rotates counter-clockwise and with this method the pot goes directly to the sod elevator, then filling with the desired portion of sod, before moving onward to the drill tower where a hole is made in the soil for a plant/root that will be planted later.
A press machine will compress soil if the pot will be used for sowing or cutting. Afterward, the pot is moved further to the ejector, which places the pot on the elevator band, transporting this now ready filled pot out of the machine. This then allows you to easily plant and then move pots to the edge of the transport line.
This Machine can be made operationally complete with different accessories, as below:
A collection table
A robot for picking up pots
A sowing unit
A planting robot
Osmocote dosage
A watering unit,
A sod buffer from 1 to 120 m, for example Sodmixer to Jumbo soil buffer.
Details:
Adjustable pot magazine for 9-23 cm pots, termo or vacuum.
Conveyer and 3 metre conveyer band made of stainless steel, with various speed settings
Equipped with four strong wheels
Adjustable pot wreath in height
Central adjustment for 8-23 cm pots
Adjustments for pots' size can be easily made with the help of the enclosed crank
Adjustable production capacity up to 4.500 items/hour
Sod bag på 1m³
Electronic sod dosage
Transverse elevator which gives longer lifetime
Size: Width 1600 mm, Length 4200 mm, Height 2000mm, Weight 1750kg
Pot machine can be equipped with:
Cylinder power usable with pot magazine for more regular release
Pneumatical pot magazine which gives better opportunity for the adjustment of pot release
Pneumatical ejector for a smoother output
Adjustable electronic speed setting of conveyer
2m band for pot filling with side support and stand
Frequency control of the band for pot filling which gives a softer start
Terminal micro switch on the output conveyer
Upgradeable to 6000 pots/hour
Advantages
Frequency controlled elevator and pot track
Simple to use
Includes its own soil bunker with soil belt and guide belts
Very precise adjustment of the soil supply
Minimal structure change of the substrate
The unique soil-return-system prevent any jam and waste of the substrate
Central adjustment makes the machine very suitable for processing more than 1 pot size
Very mobile, because of its 4 wheels (2 swivel wheels with brake)
Easy to integrate with other systems
We provide service and reparation and have a full assortiment of spare parts available!
