Pellet burner Viking BIO

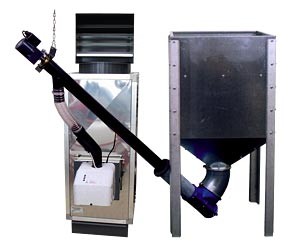

Pellet burner Viking BIO for hot air boiler or other suitable boilers/heaters.
The Pellet burner Viking BIO is designed to burn in a stable, safe and economical manner. Viking BIO feeds in small amounts of pellets but often, instead of larger amounts after longer time periods. This product also provides a more even and efficient heating solution.

Together with our hot air boiler GPTEMD30 you can get a more optimal heating solution for small and medium spaces (up to 150 m²). It is also possible to install this burner with other hot air boilers. Please contact our technical department for advice and a consultation.

Viking Bio has a unique built-in control system that monitors the pellet burner. All functions, such as starting up, effect position and cooling fases are also monitored.

In addition to this, the burner can be equiped with an outer alarm system and it also comes with a fan unit that helps to create an even, better burning solution.

The burner has no loose parts(excluding the fan) so as to provide the highest level of operational safety and to allow for a longer lifetime. In addtion to this, all parts are made from stainless steel of the highest quality. The Pellet burner Viking BIO comes delivered with an electrical cable and the european switch, a smoke detector and an auger.

Our Viking Bio will provide you with a safe heating solution for the future.

Pellet burner Viking BIO
• Adjustable burning mechanism.
• Power: 15-20 kW.
• Combustion Power: 92%.
• 1.5 or 2.5 m auger.
• Size (HxWxD): 208x216x296 mm.
• Weight: 12 kg.

Hot air boiler GPTEMD30
• Heating surface: about 50-150 m².
• Power: 34.8 kW 30.000 kcal/hour.
• Air stream: 2.500 m³/hour.
• Power: 0.44 W, 230 V, 50 Hz.
• Chimney connection: 150 mm.
• Burning chamber: 450x700 mm cylindrical.
• Size (WxHxD): 630x1950x900 mm.
